JOJOTECH CrossFlow MF membranes are manufactured in a tubular configuration capable of handling high solid concentration. The membranes, made of PVDF, are cast on the surface of 1" (2.54 cm) diameter porous polymeric tubes to produce a nominal pore size of 0.1 micron. The extraordinary chemical resistant property of PVDF allows the use of a wide range of chemicals – acids, bases and oxidizers for cleaning of the persistent fouling substances.
JOJOTECH微滤膜采用世界最高品质的聚偏氟乙烯PVDF高分子材料加工而成，设计成管式结构，采用错流式运行工艺，可以适于高含固量流体的过滤澄清，特别适于重金属废水的处理及中水回用，分离孔径在0.1um，产水水质好，过滤通量大，可以耐受酸、碱、氧化剂等化学试剂的清洗，膜通量恢复性能好，使用寿命长。
|
| |

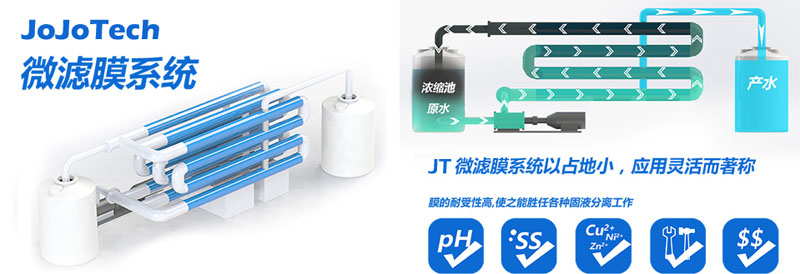

| 运行工艺 |
|
| |
型号 |

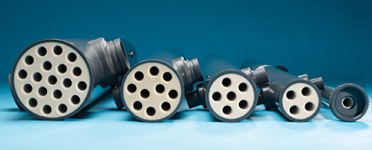

照片 |
参数 |
|
MF-401
|
|
Size: 1.5 inch diameter, 72 inches long
Number of tubes: 1 each 1 inch diameter
Approximate total surface area: 1.5 square feet
Shell construction: Schedule 40 PVC with a 0.5 inch OD filtrate port and union connection on each end
Operating pressure (maximum): 60 PSI
Pore size: 0.1 micron Nominal
Operating temperature (maximum): 110°F
Rated flow at 40 PSI: 0.5 - 1.0 GPM |
MF-404 |
 |
Size: 4 inch diameter, 72 inches long
Number of tubes: 4 each 1 inch diameter
Approximate total surface area: 6 square feet
Shell construction: Schedule 40 PVC with 1-1/2 inch OD filtrate ports, 1/4 inch sample port and standard Victaulic groove on each end
Operating pressure (maximum): 60 PSI
Pore size: 0.1 micron Nominal
Operating temperature (maximum): 110°F
Rated flow at 40 PSI: 2 - 4 GPM |
MF-406 |
 |
Size: 5 inch diameter, 72 inches long
Number of tubes: 6 each 1 inch diameter
Approximate total surface area: 9 square feet
Shell construction: Schedule 40 PVC with 2 inch OD filtrate ports, 1/4 inch sample port and standard Victaulic groove on each end
Operating pressure (maximum): 60 PSI
Pore size: 0.1 micron Nominal
Operating temperature (maximum): 110°F
Rated flow at 40 PSI: 3.0 – 6.0 GPM |
MF-415 |
 |
Size: 6 inch diameter, 72 inches long
Number of tubes: 10 each 1 inch diameter
Approximate total surface area: 15 square feet
Shell construction: Schedule 40 PVC with 3 inch OD filtrate ports, 1/4 inch sample port and standard Victaulic groove on each end
Operating pressure (maximum): 60 PSI
Pore size: 0.1 micron Nominal
Operating temperature (maximum): 110°F
Rated flow at 40 PSI: 5 - 10 GPM |
MF-419 |
|
Size: 8 inch diameter, 72 inches long
Number of tubes: 19 each 1 inch diameter
Approximate total surface area: 28.5 square feet
Shell construction: Schedule 40 PVC with 3 inch OD filtrate ports, 1/4 inch sample port and standard Victaulic groove on each end
Operating pressure (maximum): 60 PSI
Pore size: 0.1 micron Nominal
Operating temperature (maximum): 110°F
Rated flow at 40 PSI: 10 - 20 GPM |
| |
|
