痕量气体监测 |

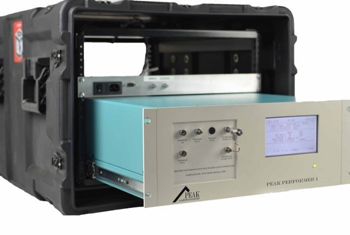

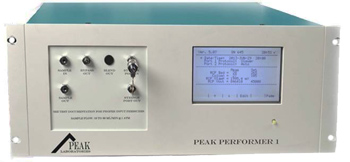

用于温室气体（CO2、CH4）、VOCs、CO等痕量气体组分分析的气相色谱(FID) Peak Performer GC Series (FID)
For trace-level detection of greenhouse gas (CO2, Methane), Volatile Organic Compounds (VOCs), Carbon monoxide, et.al. Peak Performer FID-GC主要用于实验室研究、环境污染监测、超净车间管理等领域，凭借其高灵敏度的检测性能，能够自动定时分析气体中的痕量CO2、CO、CH4等组分，最低检测限小于1ppbv，相比激光法、红外法等手段具有明显优势，重复性和稳定性高，操作简易，成本低。
Peak Performer FID-GC is used to measure trace impurities down to part per billion levels, while offering a wide linear range for simple, accurate measurements. The Peak Performer technology has proven to offer a more cost-effective and user friendly alternative to other instruments for similar applications.
Peak产品致力于为客户提供有效的解决方案，来自于内地、台湾及美国的资深工程师为客户提供全面服务。
Peak Labs practical experience and ability makes Peak Labs your partner, not just your supplier. Please contact us at Peak Laboratories or your local sales representative for custom applications and further information on our standard applications.
Peak和上海久特：
Peak公司是过程气相色谱的设计和制造的领导者，其HgO, FID, PD, TCD等检测器对痕量气体分析的卓越性能已被市场证明，并得到用户的充分认可。Peak痕量气体分析产品（ppb级），为客户提供优质和高效的解决方案。
Peak Laboratories, LLC. is a world leader in the design and manufacture of process gas chromatography systems. Our proven Mercuric Oxide, Flame Ionization, Pulse Discharge and Thermal Conductivity Detectors are used by industries worldwide. Peak leverages advances in hardware and software to offer a unique trace analysis (down to ppt) and enhanced capabilities to create both superior technical results and user friendly operations.
上海久特环境是Peak Laboratories公司的优秀合作伙伴，并为国内外教育、研究等用户提供优质的产品及售后服务。Shanghai JOJO is the excellent partner of Peak Laboratories, LLC, and provides best products and service for education and research customers in China.
|
| |
| |
性能Performance*
检测限Some standard detection limits (×10-12,in parts per trillion)
混合气氛 Matrix Gas |
N2, Ar, He |
测试组分，Impurity |
|
|
CH4: Methane |
500 |
500 |
CO: Carbon Monoxide |
n/a |
n/a |
CO2: Carbon Dioxide |
800 |
800 |
NMHC: Non-methane-hydrocarbons |
800 |
800 |
以上性能数据是经过5cc定量环在线取样，并在稳定的Peak Performer FID-GC 上进行的测试结果。
All performance specifications are based on fully optimized PP1 FID with 5 cc sample loop on continuous analysis.
除非特别说明，载气为高纯氮气（99.999+%）
Unless specified, carrier gas is purified nitrogen
FID的燃烧H2和混合空气为超纯级（杂质＜1000ppb）
FID fuel gases are UHP grade < 1000 ppb impurities
准确度Accuracy
±10%读数或检测限差别，以较高结果为准
+ / - detection limit or 10% of reading, whichever is higher.
量程Range
根据客户需求进行选择ppb级、ppm级
Depends on the customer’s demand for ppb or ppm levels
尺寸及电源Dimensions / Electrical
27" L x 17" W x 7" H
25 lbs.
115 VAC, 50 – 60 Hz / 220 VAC, 50-60 Hz
1.5 amp maximum
其它选项Accessories and other features
注射器进样口
On column syringe injector adapter
双通道进样测试
Dual sample stream option
4-20 mA输出
4-20 mA Output
|
|
|
|
|
|
|
|
